KitchenAid 22 cu.ft. 36" Counter Depth French Door Refrigerator with Interior Dispense & 30" 5-Burner Gas Convection Front Control Range & 44 dBA Dishwasher in PrintShield(TM) Finish

Details & Features

• Interior Water Dispenser
• provides easy access to filtered water and is conveniently located for one-hand operation.
• Produce Preserver
• Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
• Humidity Controlled Crispers
• Provide a dedicated storage option with adjustable humidity levels to keep fresh food in an optimal environment.

• ExtendFresh Plus Temperature Management System - Ensures ingredients remain fresh for maximum taste and texture using a sensor-controlled system with a variable-capacity compressor. There is one thermistor in the freezer and one thermistor in the refrigerator.
• FreshChill Temperature-Controlled Full-Width Pantry - Lets you properly store everything from meats to produce with a manual temperature setting. It gives you total control over of the amount of cool air that enters the drawer.
• Pull-Out Tri-Level Freezer Drawer - Features slide-out baskets with mats to help keep the freezer clean and organized.
• SatinGlide™ System - Uses space-efficient, under-mounted pans with rollers and glides for satisfyingly smooth operation.
• LED Lighting - Illuminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
• Star-K Certified - STAR-K KOSHER CERTIFICATION for use on the Jewish Sabbath and other religious holidays.

Tech Specs

Specifications
Dimensions
Cabinet Width	90.49 cm, 35-5/8 in
Capacity	21-47/50
Cutout Height	182.88 cm, 72.0 in
Cutout Width	91.44 cm, 36.0 in
Depth	76.84 cm, 30-1/4 in
Depth Closed Excluding Handles	70.48 cm, 27-3/4 in
Depth Closed Including Handles	76.84 cm, 30-1/4 in
Depth Excluding Doors	62.55 cm, 24-5/8 in
Depth With Door Open 90 Degree	112.08 cm, 44-1/8 in
Freezer Volume	158.20 l, 5.59 cu. ft.
Height	182.88 cm, 72.0 in
Height To Top Of Cabinet	181.29 cm, 71-3/8 in
Height To Top Of Door Hinge	182.88 cm, 72.0 in
Refrigerator Volume	462.70 l, 16.35 cu. ft.
Width	90.80 cm, 35-3/4 in
Certifications
Advance Foam Insulation	99.9% lower Global Warming Potential and Better Energy Performance
Counter Depth	Yes
Number of Doors	3
Appearance
Cabinet Finish	Textured
Door Finish	Smooth
Door Style	Flat
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Reach-Through Handle
Hidden Hinge	Yes
LCD Touch Screen	No
Controls
Air Filter Indicator/Reset	No
Automatic Defrost	Yes
Control Location	Interior Up Front
Door Ajar/Open Alarm	Yes
Max Cool/Fast Cool	Yes
Sabbath Mode	Yes
Verrouillage des commandes	No
Filter Details
Fresh Flow Air Filter	No
Produce Preserver	Yes
Water Filter Indicator/Reset	Yes
Water Filter Location	Interior
Refrigerator Details
Deli Drawer	No
Door Bins	Yes
Humidity-Controlled Drawers	2 Half-Width
Lighting	LED
Non Climate Control Drawers	No
Number of Interior Shelves	5
Pantry Drawer	Yes
Freezer Details
Door Type	Pull-Out
Freezer Number of Shelves	0
Dispenser Details
Dispenser Options	Filtered Water
Dispenser Type	Interior Water Only
Types of Ice	Cubed
Icemaker Details
Icemaker Location	Freezer
Certifications
CEE Tier	Not Rated
Energy Star® Qualified	No
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
UL	UL
ULe Environmentally Preferred Certified	Passed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
Electrical
Hz	60
Details
Cooling Type	Single Evaporator
Exterior
Base Grille Color	Black
Cabinet Color	Black
Freezer Compartment
Door Bins	No
Door Type	Pull-Out
Freezer Type	3 Tier
Light	LED
Shelves	No
Filters
Water Filter Part Number	EDR4RXD1
Compatibility
Connectivity	No
Works With	No
Configuration
Door Style Configuration	French Door
Installation Configuration	Freestanding
Refrigeration Configuration	Refrigerator
EndecaProps
ProductOutletCategories	Refrigerators
Status Badge Espot CA	New
Icemaker
Icemaker	Factory Installed
Product Hierarchy
Flooring Program Codes	USKADBL

Manuals

ENERGY GUIDE

DIMENSION GUIDE

USE & CARE GUIDE

WARRANTY INFORMATION

OWNERS-MANUAL-W11304745-REVA.PDF

Details & Features

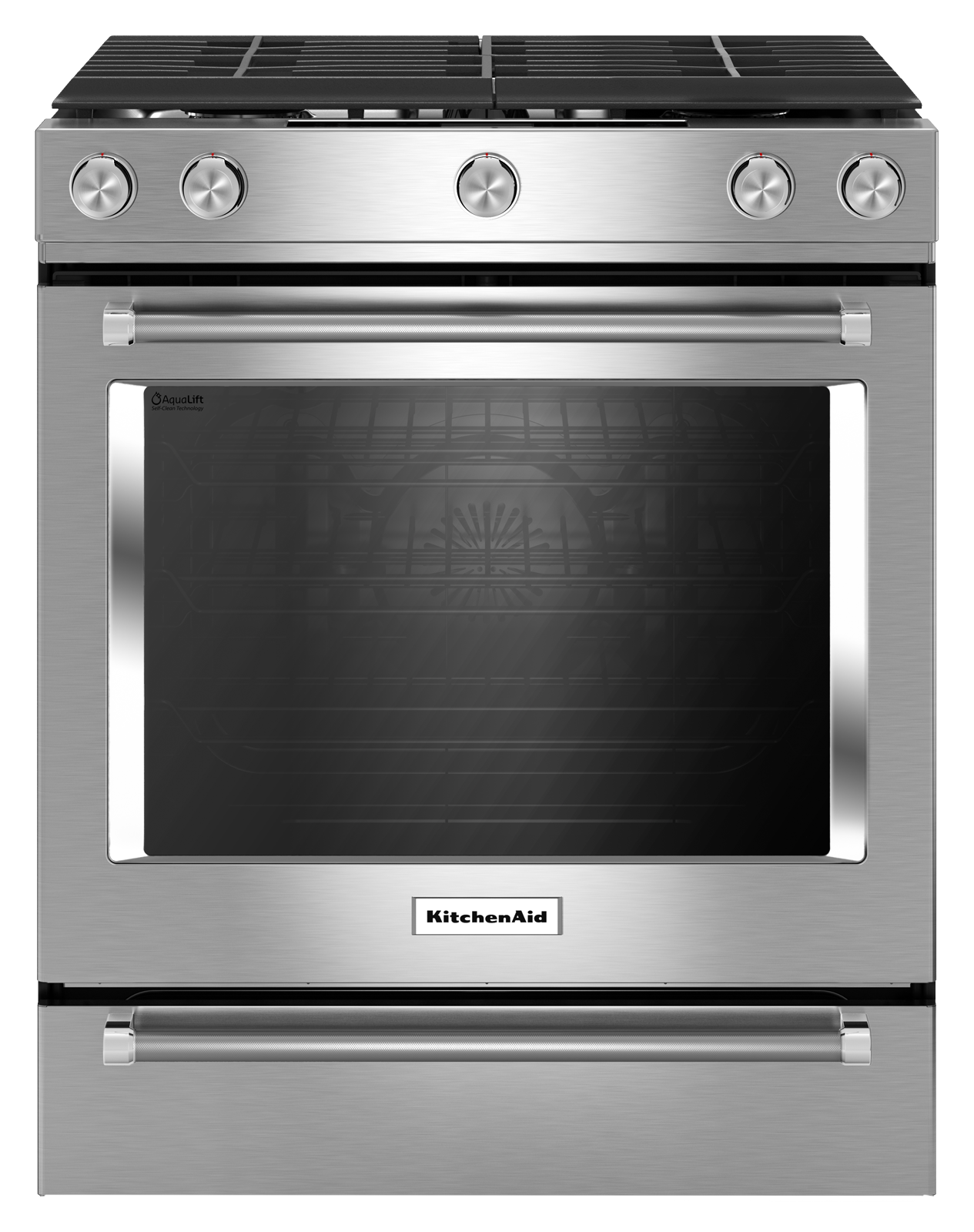

• 5 burners (5k, 8k, 9.2k, 15k and 17k) - Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
• Storage Drawer - Adds additional storage space that's perfect for pots, pans and baking sheets.
• Glass Touch Controls - Offer an intuitive, easy-to-use touch screen experience.
• Continuous Interlocking Grates - Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
• Aqualift™ - Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

Manuals

SPECIFICATION SHEET

OWNER'S MANUAL

WARRANTY

USE & CARE GUIDE

KITCHENAID FIT SYSTEM GUARANTEE 2020

OWNER'S MANUAL

INSTALLATION INSTRUCTIONS

DOWNLOAD DIMENSION GUIDE

QUICK START GUIDE

VENTILATION PAIRING GUIDE

FIT SYSTEM LIMITED GUARANTEE - 2022

INSTALLATION INSTRUCTIONS

CONTROL GUIDE

OWNER'S MANUAL

DOWNLOAD

Details & Features

• provide total cleaning coverage for dishes in all three racks with more than 50 targeted jets across four wash arms, so you can load without pre-rinsing.
• makes room for the 360° Max Jets™ Third Rack, which fits 10 extra glasses and mugs,* freeing up space for larger items below. Stemware holders in the adjustable middle rack secure wine glasses. And fold-down rows in the lower rack accommodate cookware of various shapes and sizes. *Compared to KDTE204K and KDFE204K models
• is the only third rack with 360° wash jets to clean pint glasses, coffee mugs and cereal bowls inside and out. The largest third rack available,* it also has a removable utensil tray for cooking tools and moisture-wicking tines for thorough drying. *Among leading brands based on usable volume.
• is the only dishwasher filtration system that eliminates the need for manual filter cleaning. It continuously captures food particles, so only clean water circulates through the wash jets, then cleans itself as the dishwasher drains.
• so you can let the dishwasher get a head start on cleanup while you entertain and enjoy meals, even in open-concept kitchens.
• Dishes get a thorough wash in just over an hour, so you always have what you need while prepping, cooking and entertaining.
• uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads because no two meals or the dishes that result are exactly the same.
• resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
• heats both the final rinse water and the air inside the dishwasher to help dishes come out dry and ready for your next creation. Regular and extended cycle options let you adjust drying time for different loads.
• offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors while retaining heat to help improve drying.
• move smoothly for easy loading and unloading.
• fold down to make room for dishes in a variety of shapes and sizes like roasting pans, serving bowls, colanders and dutch ovens.
• secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
• eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
• are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
• adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
• Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.*
• Eco Series dishwashers from KitchenAid brand are designed with efficiency in mind, delivering next level wash and dry performance while saving you water, energy and money.
• provide total cleaning coverage for dishes in all three racks with more than 50 targeted jets across four wash arms, so you can load without pre-rinsing.
• makes room for the 360° Max Jets™ Third Rack, which fits 10 extra glasses and mugs,* freeing up space for larger items below. Stemware holders in the adjustable middle rack secure wine glasses. And fold-down rows in the lower rack accommodate cookware of various shapes and sizes. *Compared to KDTE204K and KDFE204K models
• is the only third rack with 360° wash jets to clean pint glasses, coffee mugs and cereal bowls inside and out. The largest third rack available,* it also has a removable utensil tray for cooking tools and moisture-wicking tines for thorough drying. *Among leading brands based on usable volume.
• is the only dishwasher filtration system that eliminates the need for manual filter cleaning. It continuously captures food particles, so only clean water circulates through the wash jets, then cleans itself as the dishwasher drains.
• Dishes get a thorough wash in just over an hour, so you always have what you need while prepping, cooking and entertaining.
• so you can let the dishwasher get a head start on cleanup while you entertain and enjoy meals, even in open-concept kitchens.
• uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads because no two meals or the dishes that result are exactly the same.
• resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
• heats both the final rinse water and the air inside the dishwasher to help dishes come out dry and ready for your next creation. Regular and extended cycle options let you adjust drying time for different loads.
• offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors while retaining heat to help improve drying.
• move smoothly for easy loading and unloading.
• fold down to make room for dishes in a variety of shapes and sizes like roasting pans, serving bowls, colanders and dutch ovens.
• secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
• eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
• are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
• adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
• Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.*
• Eco Series dishwashers from KitchenAid brand are designed with efficiency in mind, delivering next level wash and dry performance while saving you water, energy and money.

• 50+ Total Wash Jets
• 7.25 cu. ft. MaxTub Largest Dishwasher Tub Based on usable volume.
• 360° Max Jets™ Third Rack
• True Self-Cleaning Filtration
• Designed for Quiet Cleaning at 44 dBA

Tech Specs

Certifications
ADA Compliant	No
CEE Tier Rating	Tier I
CUL	Yes
Energy Star Qualified	No
Energy Star® Qualified	No
NSF Certified	Yes
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Star K Certified	Yes
Exterior Details
Control Panel Color	Black
Door Style	Flat
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Towel Bar
Magnetic Door	Yes
Details
Built-In Water Softener	No
Dishwasher Cycle Selection	Express Wash, Normal, ProWash™, Rinse Only, Tough
Dishwasher Option Selections	2-4-8 Hour Delay, Extended Heat Dry, Heated Dry, Hi Temp Wash, Sani Rinse®
Dishwasher Type	Built-In
Dispensers	Detergent and Rinse Aid
Drying System Type	Vent Dry with Heating Element
Fingerprint Resistant	Yes
Handle Material	Metal
Handle Type	Towel Bar
Number of Place Settings	16
Number of Racks	3
Number of Wash Levels	7
Number of Washarms	5
Rack Material	Nylon
Rinse Aid Dispenser Level Indicator	Yes
Sensor	Yes
Sound Package	Yes
True Hold Door	Yes
Tub Material	Stainless Steel
Tub Style	Built-in Tall Tub 24in.
Wash System	Clean Water Wash
Wash System Type	True Self-Cleaning Filtration
Water Filtration	Yes
Dimensions
Cutout Depth	60.96 cm, 24 in
Cutout Height	87.63 cm, 34-1/2 in
Cutout Width	60.96 cm, 24 in
Depth	67.94 cm, 26-3/4 in
Depth Closed Excluding Handles	62.23 cm, 24-1/2 in
Depth With Door Open 90 Degree	129.54 cm, 51 in
Gross Weight	52.62 kg, 116 lbs
Height	85.41 cm, 33-5/8 in
Maximum Height	87.95 cm, 34-5/8 in
Minimum Height	85.41 cm, 33-5/8 in
Net Weight	47.63 kg, 105 lbs
Width	60.64 cm, 23-7/8 in
Cycles
Number of Wash Cycles	5
Rack Details
Culinary Basket	No
Lower Rack Cushion-Tip Tines	Yes
Lower Rack Extras	Stainless Steel Wash Arm
Lower Rack Fold-Down Tines	1 Adjustable, 1 Fold Down
Lower Rack Glides	Wheels
Lower Rack Style	Extended
Lower Rack Utility Basket	No
Second Level Rack Adjustable	2 Position-Removable
Second Level Rack Cushion-Tip Tines	Yes
Second Level Rack Extras	2 Stemware Holders, Stainless Steel Wash Arm
Second Level Rack Fold-Down Tines	1 Row 6 Position
Second Level Rack Glides	Ball Bearings
Silverware Basket Covers	Yes
Silverware Basket Location	Bottom Rack
Silverware Basket Type	Large In-the-Rack Basket
Third Level Rack Adjustable	No
Third Level Rack Glides	Satin Glides
Third Level Rack Removable	Yes
Third Level Rack Type	360° Max Jets™ Third Rack
Installation Considerations
Hoses Included	Drain Hose
Controls
Automatic Temperature Controls	Yes
Control Location	Top
Control Type	Tap Touch
End of Cycle Signal	Yes
Status Light	White
Interior Details
Interior Light	No
Silverware Basket Details
Silverware Basket Covers	Yes
Silverware Basket Location	Bottom Rack
Electrical
Amps	15
Hz	60
Power Cord Included	No
Volts	120
Features
Dishwasher Features	Third Level Rack

Manuals

DOWNLOAD ENERGY GUIDE

DOWNLOAD WARRANTY

CYCLE GUIDE

DOWNLOAD OWNER'S MANUAL

QUICK START GUIDE ADDITIONAL DOCUMENTS

DOWNLOAD DIMENSION GUIDE

QUICK START GUIDE

SAFETY AND INSTALLATION INSTRUCTIONS

TERMS AND CONDITIONS

INSTRUCTION SHEET
